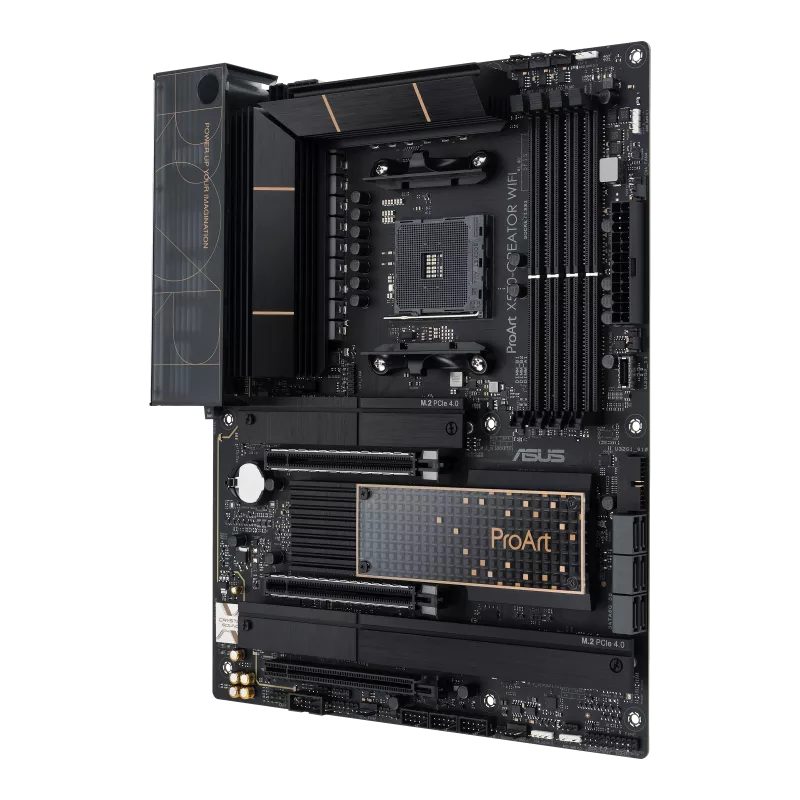

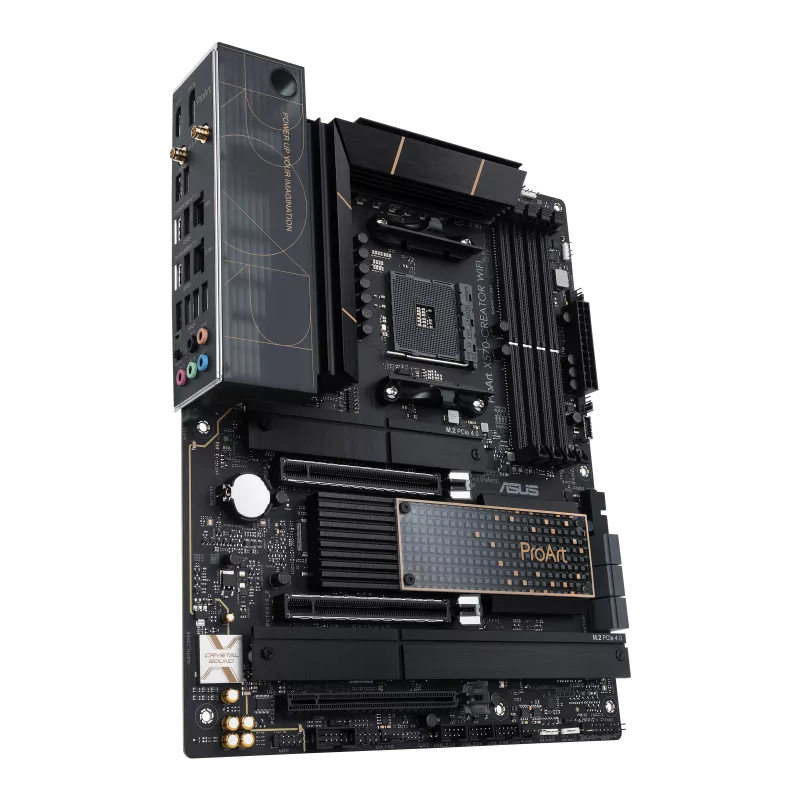

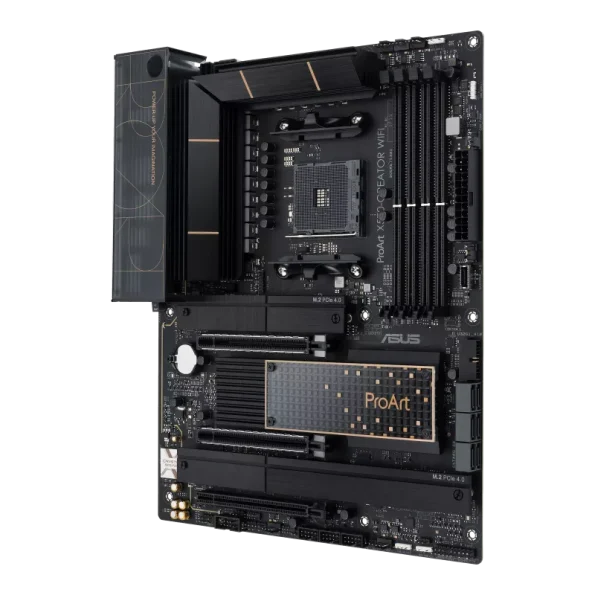

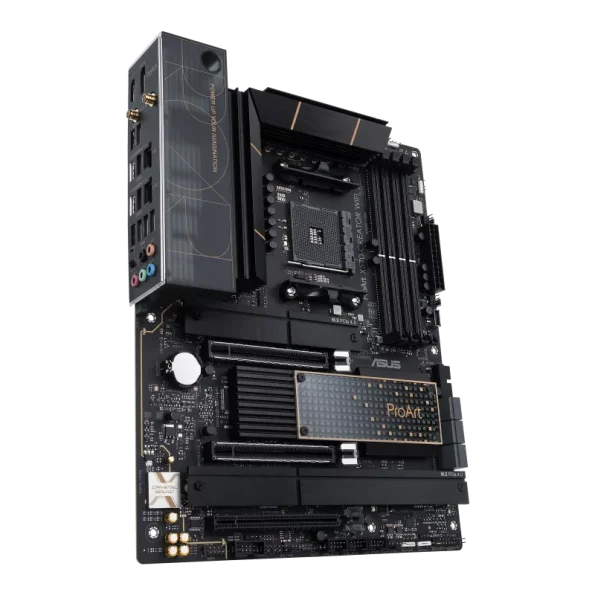

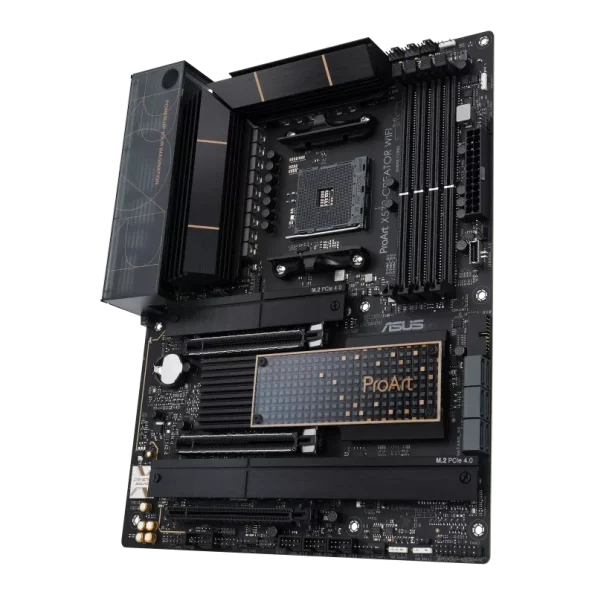

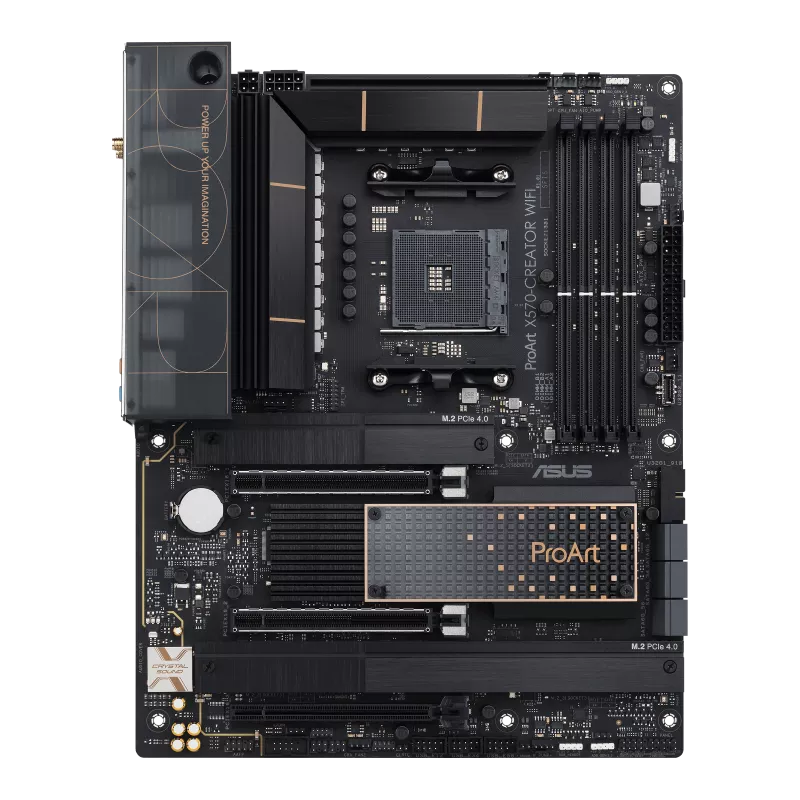

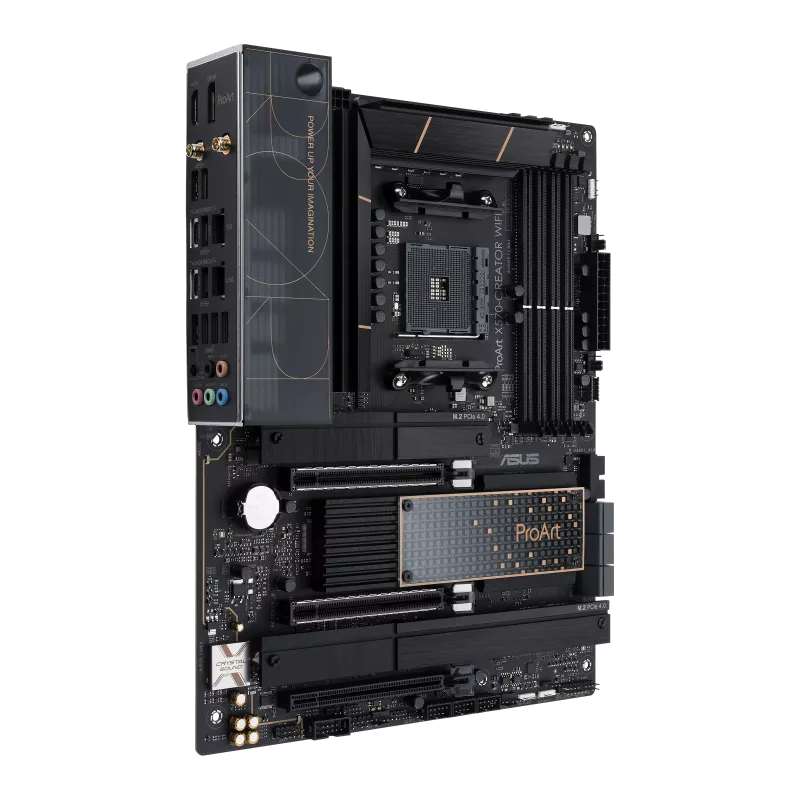

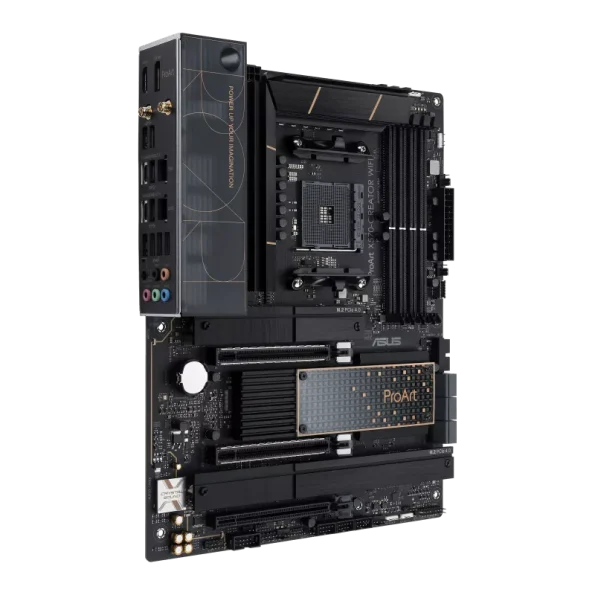

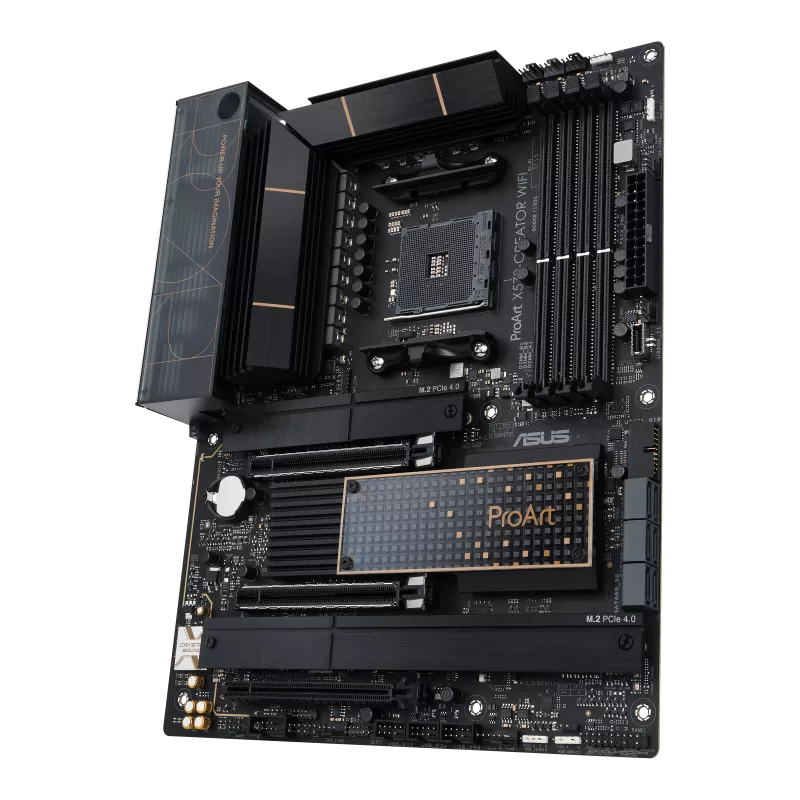

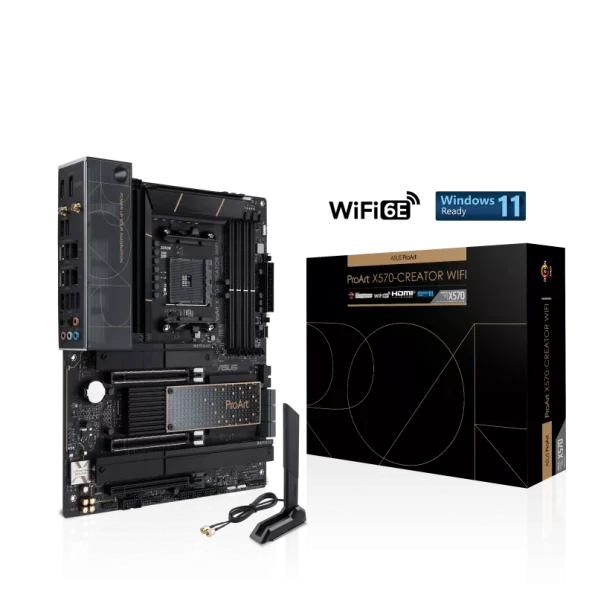

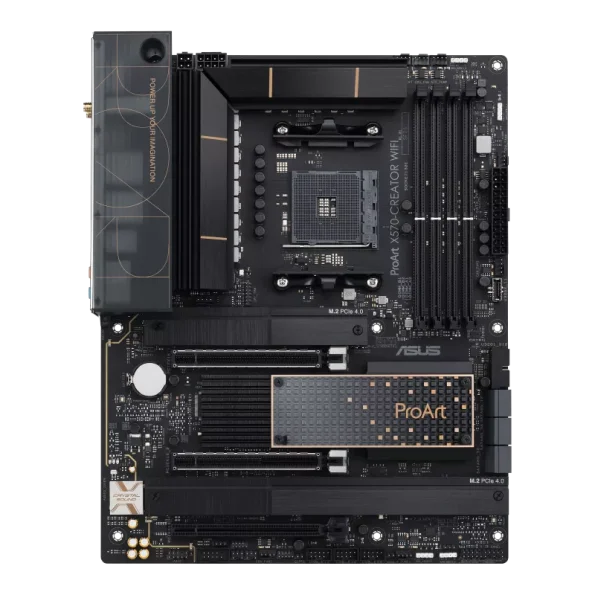

مادربرد Asus ProArt X570 Creator Wifi

مادربرد قدرتمند و تخصصی Asus ProArt X570 Creator Wifi جز بهترین بردهای جهان در زمینه تولید محتوا، رندرینگ و محاسبات است که به صورت تخصصی برای اینکار توسعه داده شده است.

مادربرد Asus ProArt X570 Creator Wifi

مادربرد Asus ProArt X570 Creator Wifi که برای سوکت AM4 توسعه داده شده است امکان پشتیبانی از AMD Ryzen^™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series CPUs را داشته که تقریبا طیف کامل پردازنده های رایزن را شامل می شود.

مدار تغذیه 14+2 power stages, ProCool II power connector, high-quality alloy chokes and durable capacitors می باشد که علاوه بر استفاده از بهترین چوک ها و خازن ها، امکان اورکلاکینگ طولانی مدت و پایدار را فراهم آورده است.

سیستم خنک کنندگی مادربرد Asus ProArt X570 Creator Wifi شامل Massive VRM heatsink, passive chipset heatsink and M.2 aluminum heatsinks به بهترین حالت ممکن طراحی شده است تا در استفاده های طولانی مدت بدون هیچگونه وقفه ای خدمات رسانی کنید.

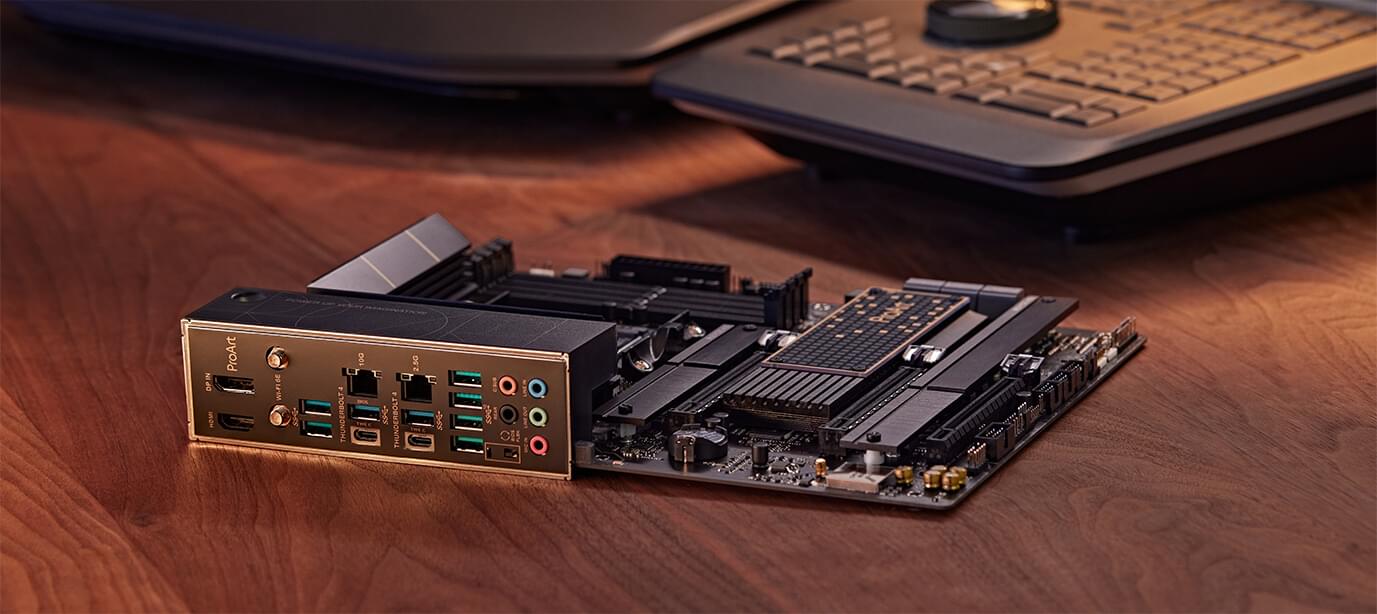

امکانات و پورت های خروجی مادربرد Asus ProArt X570 Creator Wifi بسیار تخصصی و ارزشمند است که شامل Extensive connectivity: Dual Thunderbolt™ 4 Type-C ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, three PCIe^® 4.0 M.2 slots and USB 3.2 Gen 2 ports می باشد.

قابلیت های امنیتی این مادربرد شامل USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express بوده که در اختیار کاربران قرار خواهد گرفت.

مادربرد Asus ProArt X570 Creator Wifi از سری پرو آرت می باشد که جز بهترین های دنیاست. عنوان Proart قابلیت هایی چون  Two-Way AI Noise Cancelation for clear online communication, and ProArt Creator Hub with CreationFirst for one-stop system control را به مادربرد اضافه کرده است.

CPU

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors*  * Refer to www.asus.com for CPU support list.

Chipset

X570

حافظه مادربرد Asus ProArt X570 Creator Wifi

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

4 x DIMM, Max. 128GB, DDR4 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*

AMD Ryzen™ 5000 G-Series and 4000 G-Series Processors

4 x DIMM, Max. 128GB, DDR4 DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*

AMD Ryzen™ 2000 Series Desktop Processors

4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*

AMD Ryzen™ 3000 G-Series and 2000-G Series Desktop Processors

4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

گرافیک مادربرد Asus ProArt X570 Creator Wifi

1 x HDMI® 2.1(4K@60Hz)

2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs *

* VGA resolution support depends on processors’ or graphic cards’ resolution. For more details about the video input and output settings please refer to the user manual.

اسلات های توسعه مادربرد Asus ProArt X570 Creator Wifi

AMD Ryzen™ 5000 Series and 3000 Series Desktop Processors

2 x PCIe 4.0 x16 (x16 or dual x8**)*

AMD Ryzen™ 5000 G-Serie, 4000 G-Series and 2000 Series Processors

2 x PCIe 3.0 x16 (x16 or dual x8**)*

AMD Ryzen™ 2000 G-Series and 3000 G-Series Processors

1 x PCIe 3.0 x16 (x8 mode)*

AMD X570 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Support PCIe bandwidth bifurcation for RAID on CPU function.

** PCIEX16_2 slot share bandwidth with M.2_2, which runs at PCIe 4.0/3.0 x8 by default.

When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings.

ذخیره سازی مادربرد Asus ProArt X570 Creator Wifi

Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series and 3000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)*

AMD Ryzen™ 5000 G-Serie, 4000 G-Series and 2000 Series Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)*

AMD Ryzen™ 2000 G-Series and 3000 G-Series Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD X570 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

Supports RAID 0, 1, 106 x SATA 6Gb/s ports * M.2_2 slot share bandwidth with PCIEX16_2. When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings.

شبکه مادربرد Asus ProArt X570 Creator Wifi

1 x Intel® 2.5Gb Ethernet
1 x Marvell® 10Gb Ethernet

1 x Marvell® AQtion AQC113CS 10Gb Ethernet

1 x Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

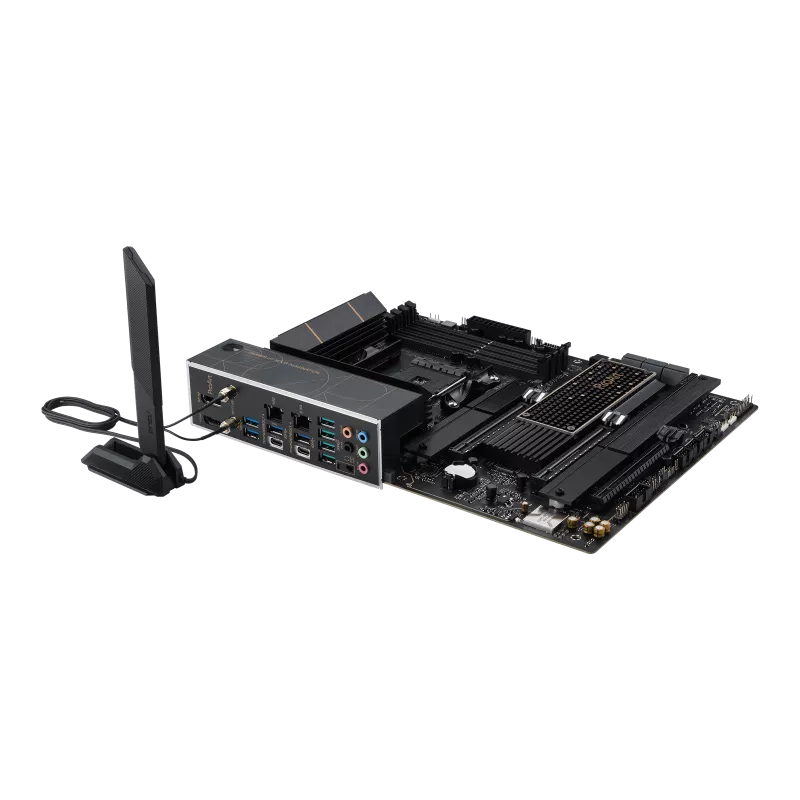

Wireless & Bluetooth

2×2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) + BT5.2

Wi-Fi 6E

2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB

Rear USB:Total 10 ports

Rear USB (Total 10 ports)

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports

صوت مادربرد Asus ProArt X570 Creator Wifi

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

– Impedance sense for front and rear headphone outputs

– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

– Supports up to 32-Bit/192 kHz playback*

Audio Features

– Power pre-regulator reduces power input noise to ensure consistent performance

– Premium Japanese audio capacitors

– Dedicated audio PCB layers

– Audio cover

– Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

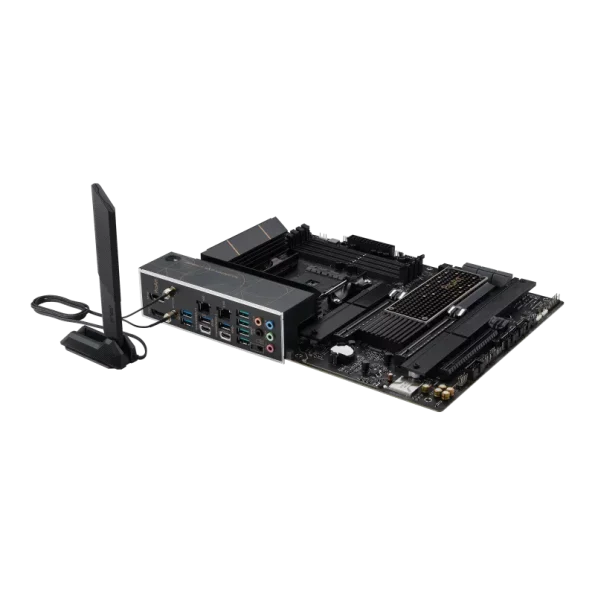

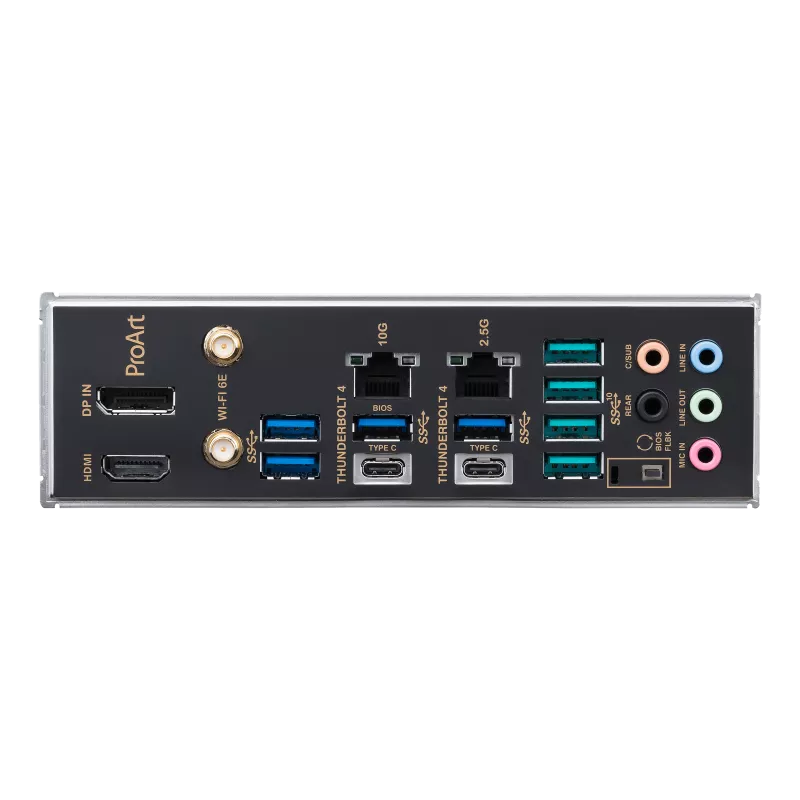

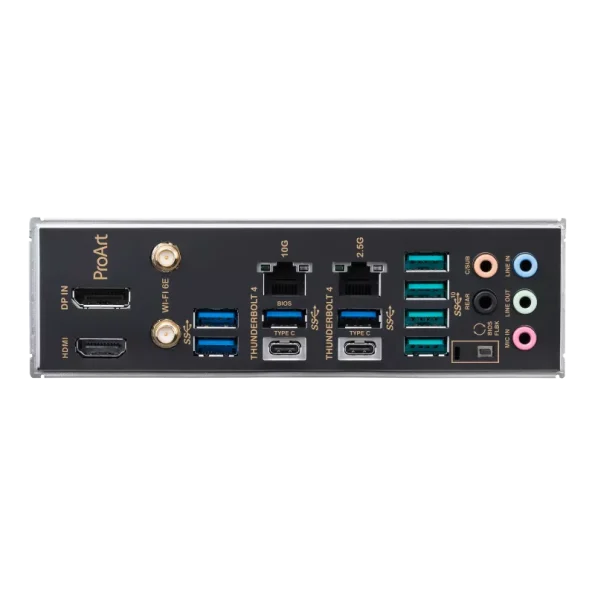

Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® port(s)

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

1 x DisplayPort (Input only)

1 x HDMI® port

1 x Intel® I225-V 2.5Gb Ethernet port

1 x Marvell® AQtion AQC113CS 10Gb Ethernet port

1 x ASUS Wi-Fi Module

5 x Audio jacks

1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x W_PUMP+ header(s)

4 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports

Miscellaneous

3 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function1 x Thermal Sensor header

Special Features

ASUS 5X PROTECTION III

– DIGI+ VRM (- Digital power design with Dr. MOS)

– Enhanced DRAM Overcurrent Protection

– ESD Guards

– LANGuard

– Overvoltage Protection

– SafeSlot Core

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– M.2 Q-Latch

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– ProCool II

– Pre-mounted I/O shield

– SafeSlot

AURA Sync

– AURA RGB header(s)

– Addressable Gen 2 RGB header(s)

Bespoke Motherboard Design & Business Focused Features

– 24/7 Reliability- Overcurrent Protection

Software Features

ASUS Exclusive Software

Armoury Crate

– AURA Creator

– AURA Sync

– Two-Way AI Noise Cancelation

AI Suite 3

– 5-Way Optimization by Dual Intelligent Processors 5

TPU

EPU

Digi+ VRM

Fan Xpert 4

Turbo app

– EZ update

ASUS CPU-Z

IT Management software supported

– ASUS Control Center Express(ACCE)

ProArt Creator Hub

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

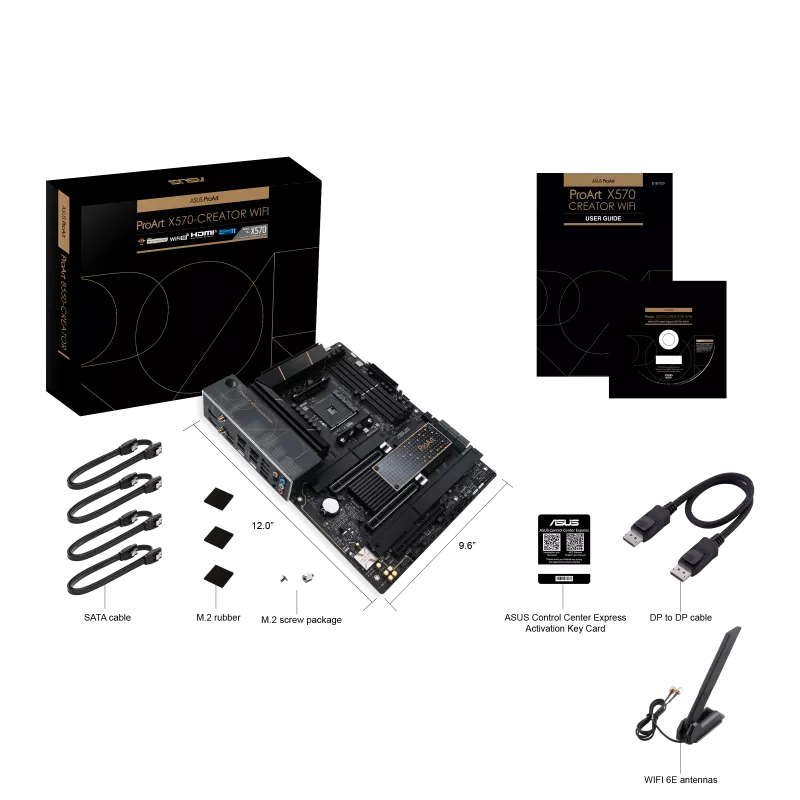

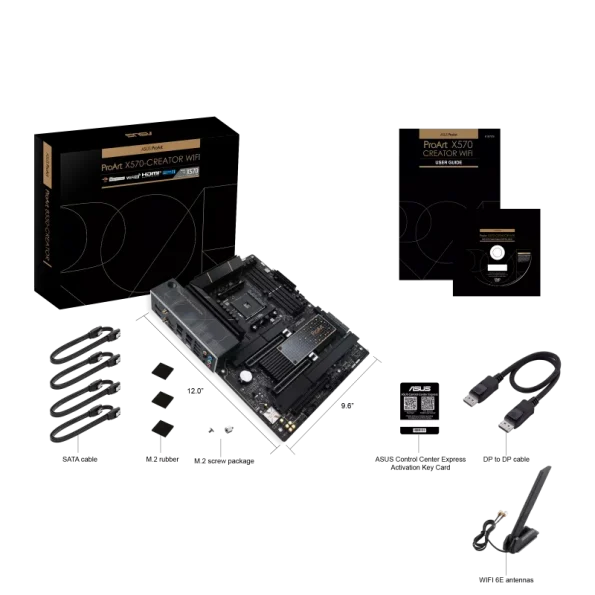

Accessories

Cables

4 x SATA 6Gb/s cables

1 x DP to DP cable for Thunderbolt™ 4

Miscellaneous

1 x ASUS Wi-Fi moving antennas

2 x M.2 Rubber Package(s)

1 x M.2 SSD screw package(s)

1 x Q-connector

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User manual

Operating System

Windows® 11 64-bit, Windows® 10 64-bit
Windows® 10 64-bit, Windows® 11 Ready

Form Factor

ATX
30.5cm*24.5cm
